Upload Models

Upload Models

You can upload Process Simulator models to ProModel Enterprise.

This feature is only present in Process Simulator 2011 SP4 and later.

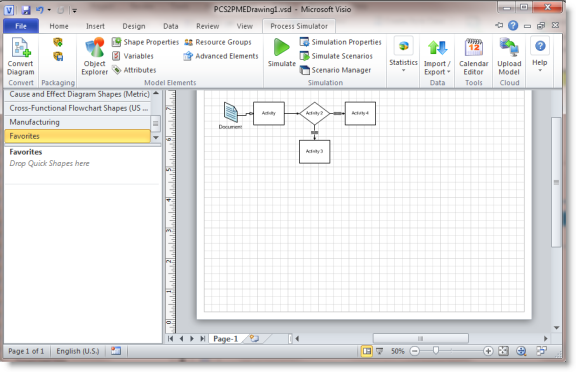

  1. Click Upload Model.

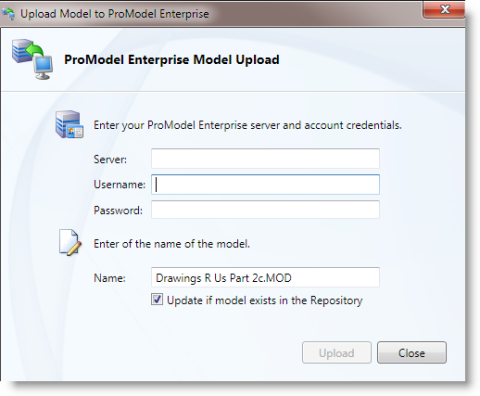

  2. The Upload dialog box appears.

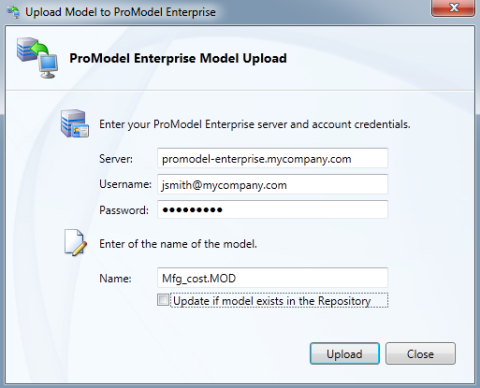

  1. Enter the Server URL where ProModel Enterprise resides.
  2. Enter your valid Username and Password.
  3. Enter the name of the model you wish to upload. It will automatically display the name of the model currently loaded.
  4. “Update if model exists in Repository” Click this box to update an existing model in ProModel Enterprise. Both models must have the same name.

  1. Click Upload or Close.
If you select to upload again, the last ProModel Enterprise Server you accessed will be listed under Server and Username. You will only have to re-enter the password.
If you have access to multiple divisions in ProModel Enterprise,when you upload a model from Process Simulator to ProModel Enterprise, it will upload to the last division you had selected when you exited ProModel Enterprise.

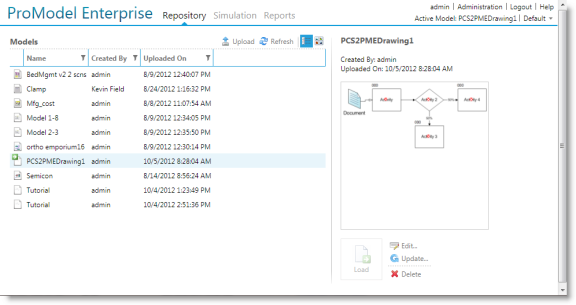

  1. Once you have uploaded your model, it will be available in the ProModel Enterprise Repository.
